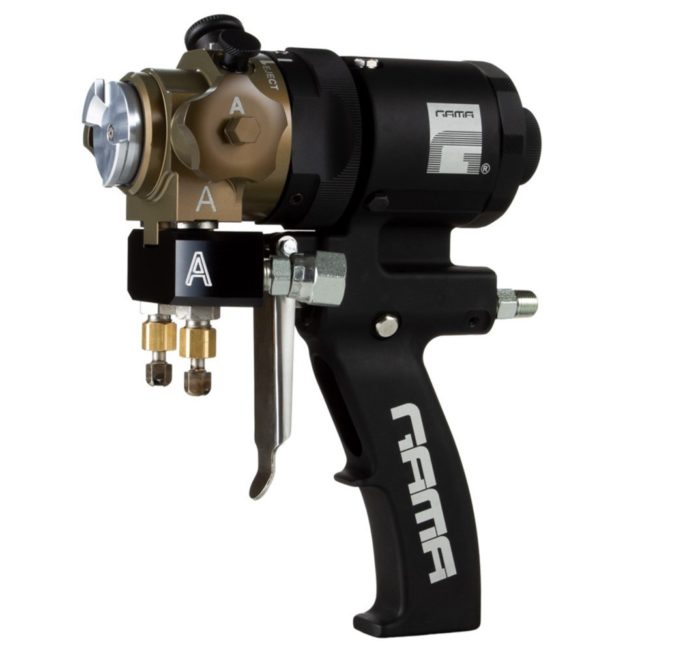

HT Black Gun

The HT Black Gun introduces a breakthrough in technology with the one push patent pending system that allows you to remove the mixing chamber independently – without the need to extract the gun block like in other traditionally designed guns. The HT Black Gun also offers the new twist & pull lock system to enable a fast and easy gun block disassembly. Hi-Tech Spray Equipment Engineering Team has developed the HT Black Gun to be light, easy to handle, intuitive and with the fastest maintenance system on the market. Maximum working pressure:______________________________________240 bar (24 MPa) Required air pressure: _______________________________________ 6-8 bar (0.6-0.8 MPa) Maximum production ratio 1:1:__________________________________________18 kg/min Minimum production ratio 1:1: _________________________________________ 1.5 kg/min Opening force @ 6 bar: ___________________________________________________ 96 kg Closing force @ 6 bar: ___________________________________________________ 109 kg Approximate air consumption @ 6 bar (50 cycles/min): _____________________ 307 l/min
